Google Flow

Comprehensive Google Workspace integration for Gmail, Sheets, Docs, and Drive operations.

How to Use

Input Requirements

To configure Google operations, you need:

• Authentication Token: Required for all Google services
• Operation Type: Specify which Google service and action to perform
• Service-Specific Parameters: Based on the operation you want to execute

Supported Google Services

Gmail Operations

{
  "operation": "send",
  "to": "recipient@example.com",
  "subject": "Meeting Reminder",
  "body": "Don't forget about our meeting tomorrow at 2 PM"
}

{
  "operation": "list",
  "from": "manager@company.com",
  "status": "unread"
}

{
  "operation": "search",
  "query": "from:client@company.com subject:invoice",
  "maxResults": 10
}

Google Sheets Operations

{
  "operation": "create",
  "title": "Q4 Sales Report"
}

{
  "operation": "read",
  "spreadsheetId": "1CXvP-ZBQKbQl4WYIxTeSJxxOFTchXUwBIM2kXXsLluw",
  "range": "A1:C10"
}

{
  "operation": "write",
  "spreadsheetId": "1CXvP-ZBQKbQl4WYIxTeSJxxOFTchXUwBIM2kXXsLluw",
  "range": "A1:C3",
  "values": [
    ["Product", "Sales", "Revenue"],
    ["Laptop", "150", "$149,850"],
    ["Phone", "320", "$255,680"]
  ]
}

{

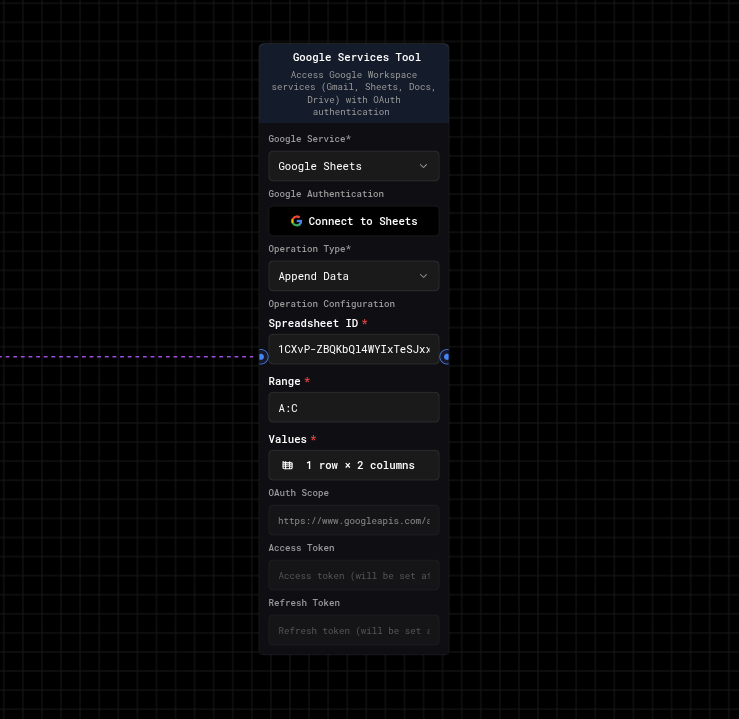

  "operation": "append",
  "spreadsheetId": "1CXvP-ZBQKbQl4WYIxTeSJxxOFTchXUwBIM2kXXsLluw",
  "range": "A:C",
  "values": [["Tablet", "89", "$26,700"]]
}

Google Docs Operations

{
  "operation": "create",
  "title": "Project Proposal"
}

{
  "operation": "read",
  "documentId": "1BxiMVs0XRA5nFMdKvBdBZjgmUUqptlbs74OgvE2upms"
}

{
  "operation": "write",
  "documentId": "1BxiMVs0XRA5nFMdKvBdBZjgmUUqptlbs74OgvE2upms",
  "content": "Executive Summary\n\nThis proposal outlines our strategy for Q1 2024..."
}

{
  "operation": "append",
  "documentId": "1BxiMVs0XRA5nFMdKvBdBZjgmUUqptlbs74OgvE2upms",
  "content": "\n\nConclusion\n\nBased on market analysis, we recommend proceeding with this initiative."
}

Google Drive Operations

{
  "operation": "upload",
  "name": "monthly-report.pdf",
  "parentFolder": "1BxiMVs0XRA5nFMdKvBdBZjgmUUqptlbs74Og",
  "content": "Base64 encoded file content or file path",
  "mimeType": "application/pdf"
}

What You Get Back

Gmail Responses

• Send Email: Confirmation with message ID
• List/Search: Array of email objects with subject, sender, date, read status
• Read: Full email content including attachments info

Google Sheets Responses

• Create: New spreadsheet ID and URL
• Read: 2D array of cell values
• Write/Append: Confirmation with updated range info

Google Docs Responses

• Create: New document ID and URL
• Read: Full document text content
• Write/Append: Confirmation with character count

Google Drive Responses

• Upload: File ID, download URL, and metadata

Configuration Examples

Email Automation Workflow

Input: Customer support ticket received Configuration:

{
  "operation": "send",
  "to": "customer@example.com",
  "subject": "Support Ticket #12345 - Received",
  "body": "Thank you for contacting us. We've received your ticket and will respond within 24 hours."
}

Data Collection to Sheets

Input: Sales data from POS system Configuration:

{
  "operation": "append",
  "spreadsheetId": "1CXvP-ZBQKbQl4WYIxTeSJxxOFTchXUwBIM2kXXsLluw",
  "range": "Sales!A:E",
  "values": [["2024-01-15", "Product A", "150", "$4,500", "Store 1"]]
}

Report Generation

Input: Monthly analytics data Configuration:

{
  "operation": "create",
  "title": "January 2024 Analytics Report"
}

Use Cases

Business Operations

• Email notifications: Automated customer communications
• Data reporting: Generate spreadsheets from system data
• Documentation: Create and update business documents
• File management: Upload reports and documents

Workflow Automation

• Lead management: Track prospects in Google Sheets
• Customer support: Automated email responses
• Content creation: Generate documents from templates
• Data backup: Store important files in Google Drive

Team Collaboration

• Meeting notes: Create shared documents
• Project tracking: Update project sheets automatically
• File sharing: Upload and organize team files
• Communication: Send targeted email updates

Technical Details

Authentication Requirements

All Google operations require a valid OAuth 2.0 token with appropriate scopes:

• Gmail: https://www.googleapis.com/auth/gmail.send, https://www.googleapis.com/auth/gmail.readonly
• Sheets: https://www.googleapis.com/auth/spreadsheets
• Docs: https://www.googleapis.com/auth/documents
• Drive: https://www.googleapis.com/auth/drive.file

API Endpoints

Gmail API

• Base URL: https://gmail.googleapis.com/gmail/v1/
• Send: POST /users/me/messages/send
• List: GET /users/me/messages
• Search: GET /users/me/messages?q={query}

Google Sheets API

• Base URL: https://sheets.googleapis.com/v4/spreadsheets/
• Create: POST https://sheets.googleapis.com/v4/spreadsheets
• Read: GET /{spreadsheetId}/values/{range}
• Write: PUT /{spreadsheetId}/values/{range}
• Append: POST /{spreadsheetId}/values/{range}:append

Google Docs API

• Base URL: https://docs.googleapis.com/v1/documents/
• Create: POST https://docs.googleapis.com/v1/documents
• Read: GET /{documentId}
• Write: POST /{documentId}:batchUpdate

Google Drive API

• Base URL: https://www.googleapis.com/drive/v3/
• Upload: POST /files
• List: GET /files

Error Handling

Common Errors

• 401 Unauthorized: Invalid or expired authentication token
• 403 Forbidden: Insufficient permissions for requested operation
• 404 Not Found: Spreadsheet, document, or file doesn't exist
• 429 Too Many Requests: Rate limit exceeded

Error Response Format

{
  "error": {
    "code": 403,
    "message": "The caller does not have permission",
    "status": "PERMISSION_DENIED"
  }
}

Rate Limits

• Gmail: 1 billion quota units per day
• Sheets: 300 requests per minute per project
• Docs: 300 requests per minute per project
• Drive: 1,000 requests per 100 seconds per user

Response Formats

Gmail List Response

{
  "messages": [
    {
      "id": "17a1b2c3d4e5f6g7",
      "threadId": "17a1b2c3d4e5f6g7",
      "snippet": "Email preview text..."
    }
  ],
  "nextPageToken": "token_for_next_page"
}

Sheets Read Response

{
  "range": "Sheet1!A1:C3",
  "majorDimension": "ROWS",
  "values": [
    ["Header 1", "Header 2", "Header 3"],
    ["Value 1", "Value 2", "Value 3"],
    ["Value 4", "Value 5", "Value 6"]
  ]
}

Docs Create Response

{
  "documentId": "1BxiMVs0XRA5nFMdKvBdBZjgmUUqptlbs74OgvE2upms",
  "title": "New Document",
  "body": {
    "content": [...]
  }
}

Drive Upload Response

{
  "id": "1BxiMVs0XRA5nFMdKvBdBZjgmUUqptlbs74OgvE2upms",
  "name": "uploaded-file.pdf",
  "mimeType": "application/pdf",
  "size": "1048576",
  "webViewLink": "https://drive.google.com/file/d/ID/view"
}

Integration Patterns

Automated Reporting

// 1. Read data from source
const sourceData = await fetchAnalyticsData();

// 2. Create new spreadsheet
const sheet = await googleFlow({
  operation: "create",
  title: `Report ${new Date().toISOString().split('T')[0]}`
});

// 3. Write data to sheet
await googleFlow({
  operation: "write",
  spreadsheetId: sheet.spreadsheetId,
  range: "A1:Z100",
  values: sourceData
});

Email-to-Document Workflow

// 1. Search for specific emails
const emails = await googleFlow({
  operation: "search",
  query: "subject:feedback",
  maxResults: 50
});

// 2. Create document for compiled feedback
const doc = await googleFlow({
  operation: "create",
  title: "Customer Feedback Compilation"
});

// 3. Append each email to document
for (const email of emails) {
  await googleFlow({
    operation: "append",
    documentId: doc.documentId,
    content: `\n\n${email.subject}\n${email.body}`
  });
}

Security Considerations

• Token Management: Store authentication tokens securely
• Scope Limitation: Request only necessary permissions
• Data Validation: Validate all input data before API calls
• Error Logging: Log errors without exposing sensitive data
• Rate Limiting: Implement client-side rate limiting to prevent quota exhaustion

Performance Optimization

• Batch Operations: Use batch requests for multiple operations
• Caching: Cache frequently accessed data
• Pagination: Handle large datasets with proper pagination
• Async Processing: Use asynchronous operations for better performance
